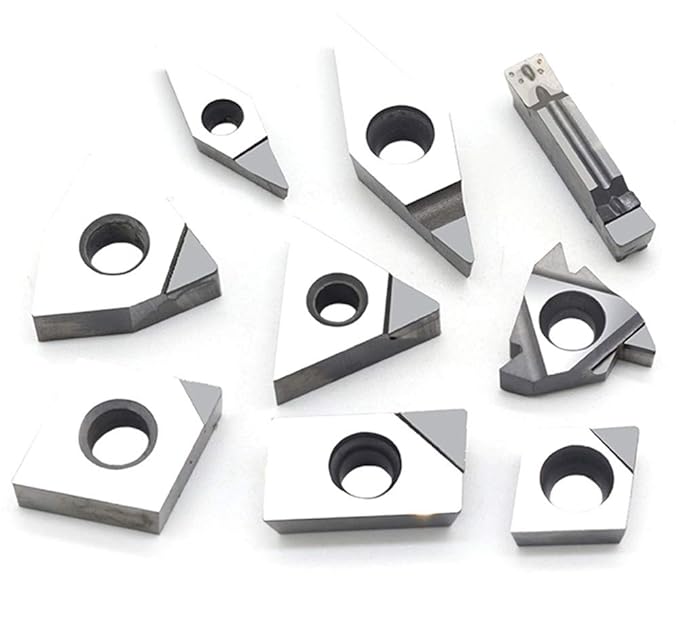

PCD Turning Inserts

Polycrystalline Diamond (PCD) turning inserts are engineered for high-performance machining of non-ferrous metals, composites, and abrasive materials. These inserts deliver superior surface finish and longer tool life compared to conventional carbide inserts, especially in applications involving aluminum, copper, brass, plastics, and carbon-fiber reinforced polymers.

Exceptional Hardness & Wear Resistance: PCD is one of the hardest materials available, offering outstanding resistance to abrasive wear and thermal degradation.
Superior Surface Finish: The ultra-sharp diamond cutting edges ensure smooth, precise cuts with minimal burrs and tool marks.
Reduced Downtime: Longer insert life means fewer tool changes, increasing productivity and reducing operating costs.

Shape	ANSI	Relief Angle (°)	Tolerance Class	Actual Nose Radius (in)	Price ($)
CCGW	CCGW21.500	7°	G	0	$53.79
	CCGW21.500W	7°	G	0	$53.79
	CCGW21.502	7°	G	0.002	$53.79
	CCGW21.504	7°	G	0.004	$53.79
	CCGW21.506	7°	G	0.006	$53.79
CPGW	CPGW21.500	11°	P	0	$53.79
	CPGW21.502	11°	P	0.002	$53.79
	CPGW21.504	11°	P	0.004	$53.79
	CPGW21.506	11°	P	0.006	$53.79
	CPGW21.508	11°	P	0.008	$53.79
DCGW	DCGW21.500	7°	G	0	$55.82
	DCGW21.502	7°	G	0.002	$55.82
	DCGW21.504	7°	G	0.004	$55.82
	DCGW21.506	7°	G	0.006	$55.82
	DCGW21.508	7°	G	0.008	$55.82
VCGW	VCGW2200	7°	G	0	$60.62
	VCGW2202	7°	G	0.002	$60.62
	VCGW2204	7°	G	0.004	$60.62
	VCGW2206	7°	G	0.006	$60.62
	VCGW2208	7°	G	0.008	$60.62
